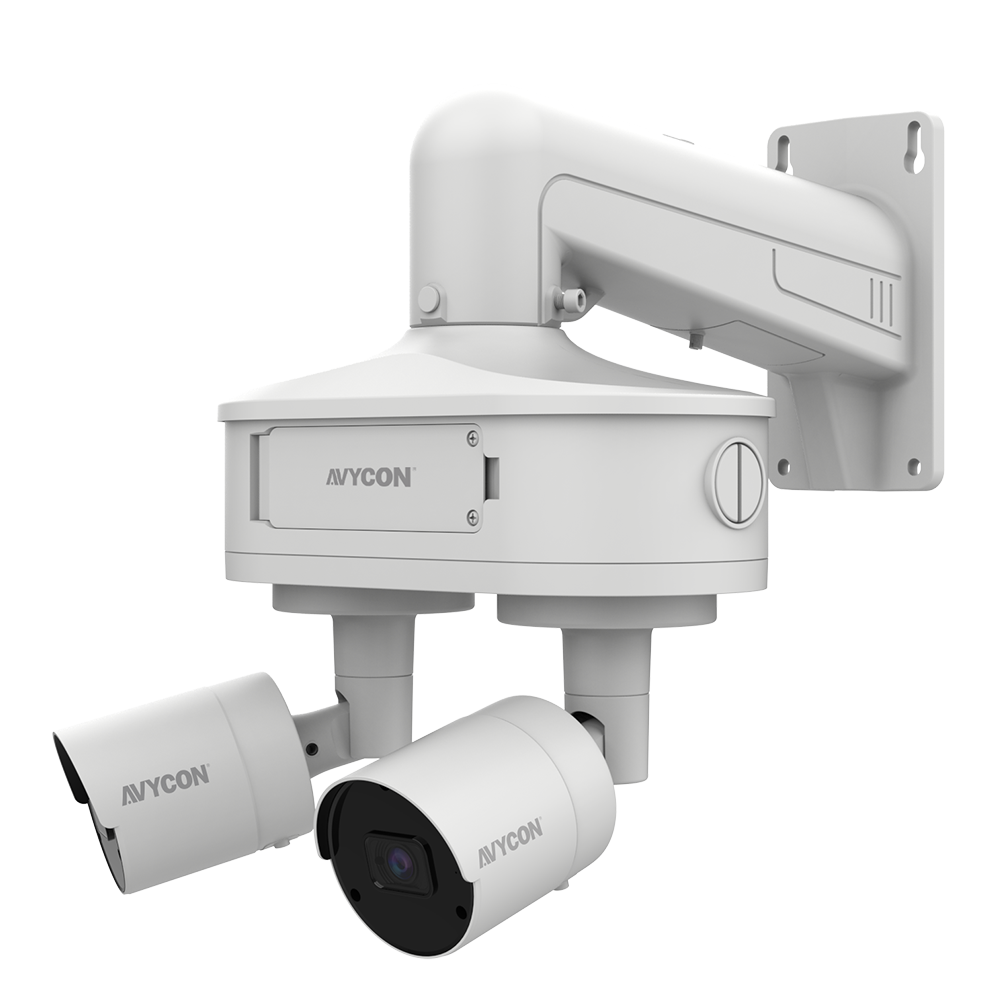

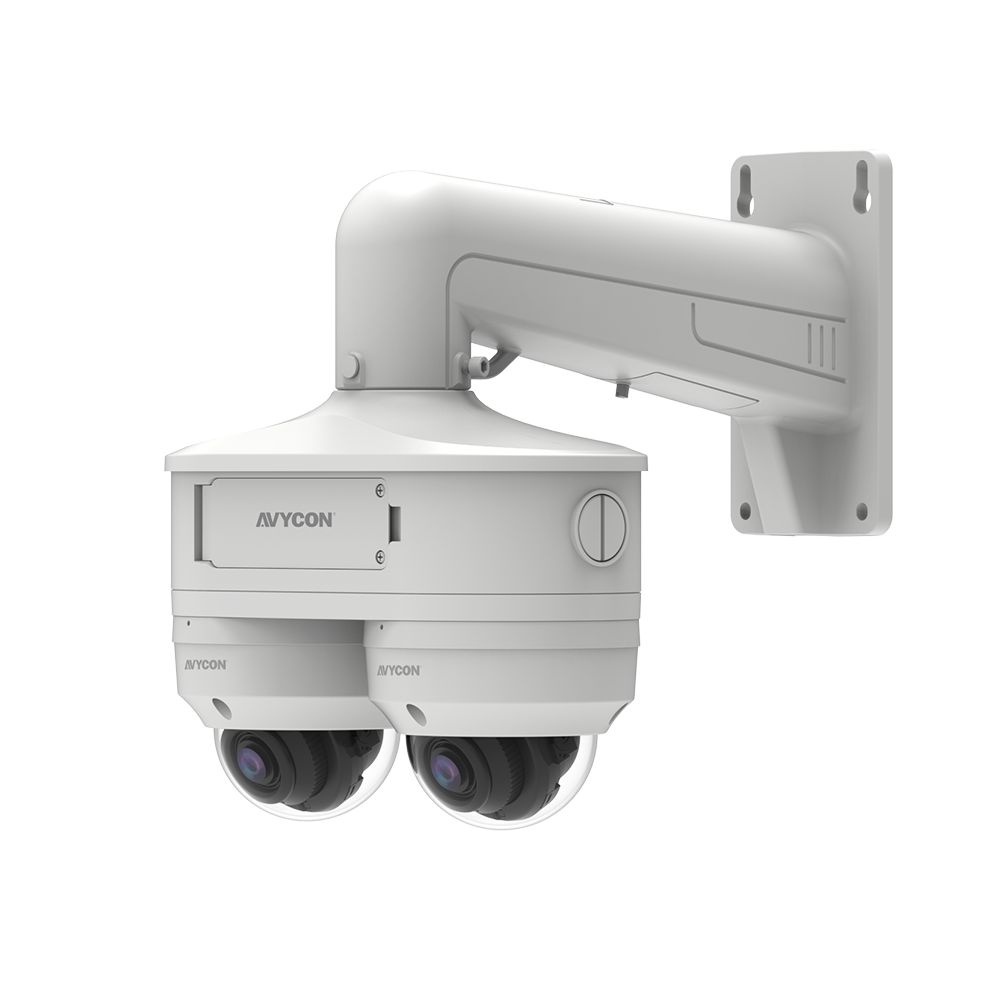

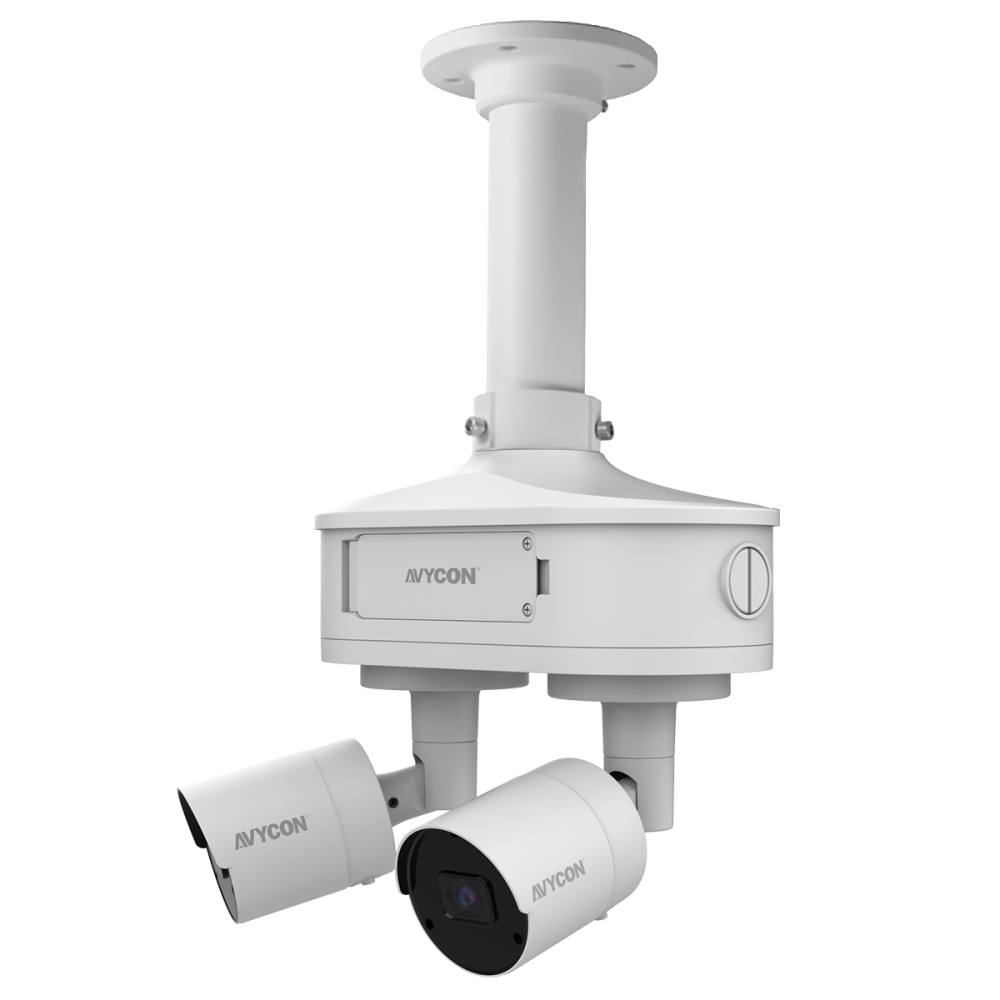

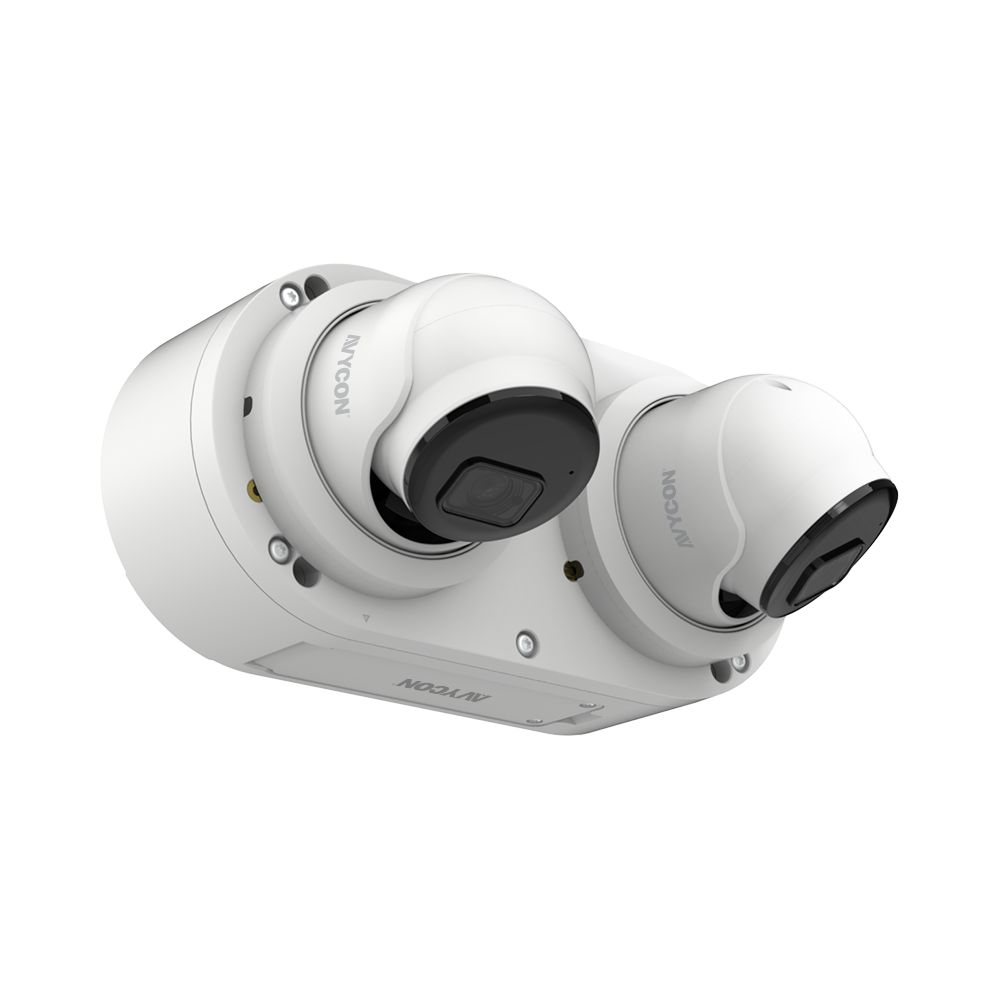

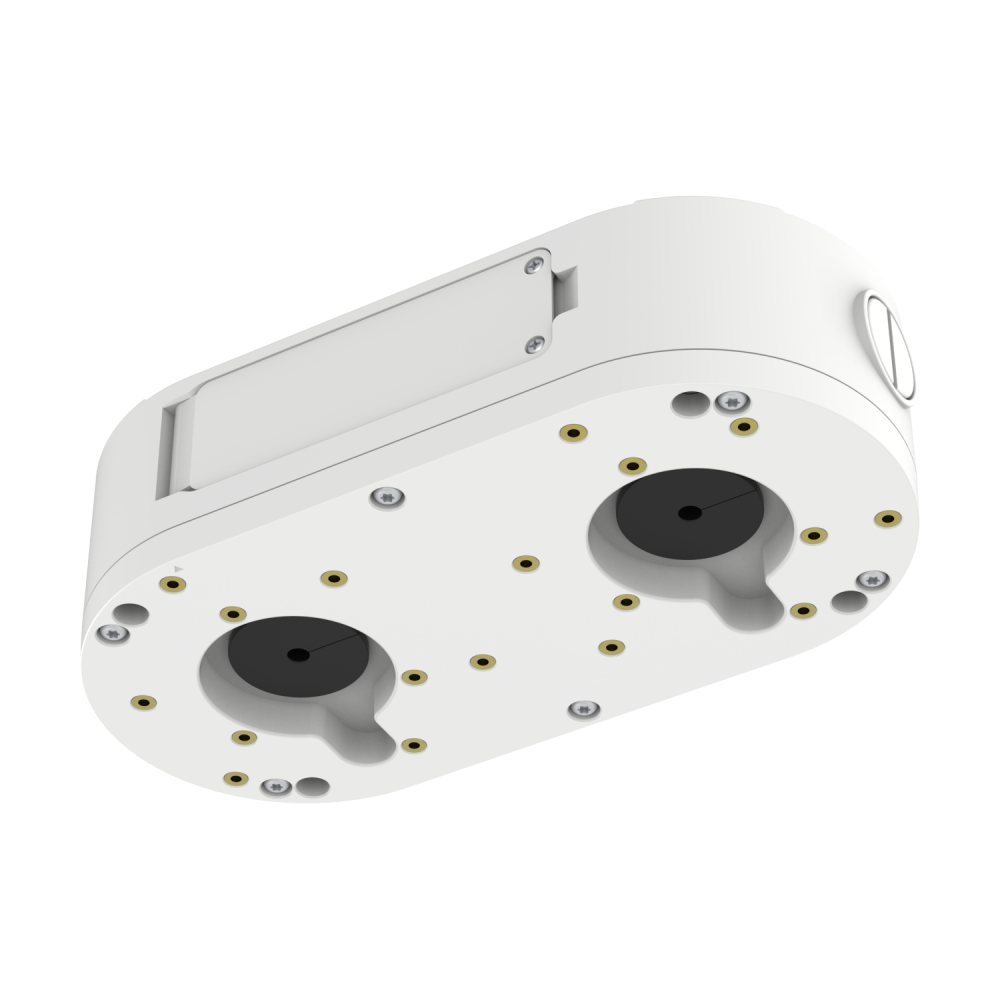

AVM-JB-DUAL-US1 DUAL-CAMERA-JUNCTION BOX
The AVM-JB-DUAL-US1 is a junction box designed for use with our all Diversity Fixed lens Cameras except Indoor dome and mini dome models. The junction box is with built-in PoE Switch and available connect two compatible cameras of all types using only one cable. The junction box is available for wall or ceiling mounting.
• Plastic plus 30% glass fiber
• Built-in PoE Switch
• Compatible with all Diversity Fixed lens Cameras
(except Indoor dome and mini dome models.)
• Available for wall or ceiling mounting
| Operating System | |
| SOC | IP804+IP179NI |
| Network | |
| Interfaces |
RJ45 ,10/100 ,200MBPOE -LAN+100MBPOE-WAN |
| LED | N/A |
| Network management | N/A |
| IEEE Standard | IEEE 802.3 |
| MAC | 3 |
| Uplink port rate | 100MP |
| Downlink port rate | 100MP |
| Exchange capacity | 1Gbps |
| Packet forwarding rate | 0.744Mpps |
| Internal Cache | 768Kbits |
| PoE | |
| PoE standard | IEEE 802.3at/af, (2 PoE for IPC power by af Max:15W, WAN for switcher power by at Max:30W） |
| Power supply | Support 1236 powering |
| PoE port | 3 ports (customized cable with 3 waterproof connectors, 2 for IPC, 1 for switcher) |
| Extend（EPOE) | N/A 802.3 |
| Max. port power supply rate | 25W |
| Max. power supply rate of switch | 30W |
| Max. power consumption of switch | 5W |
| General | |
| shell | Plastic plus 30% glass fiber |
| Installation method | Wall hanging, ceiling |
| weight | N/A |
| Dimension | 2.7in x 9.8in x 4.9in |
| Operating Temperature/Humidity | "Temperature : -22°F~+140°F (-30°C~+60°C), Humidity : Less than 90%RH" |
| Storage Temperature/Humidity | "Temperature : -40°F~+185°F (-40°C~+85°C), Humidity : Less than 90%RH" |
| Power Specifications | POE 30W（no electrical port，PoE power supply, connecting PoE switcher and PoE-NVR） |
| RJ45 | 4KV |
| Thunder Prevention | 4KV |
