AVA-E501N-AI 요약정보 및 구매

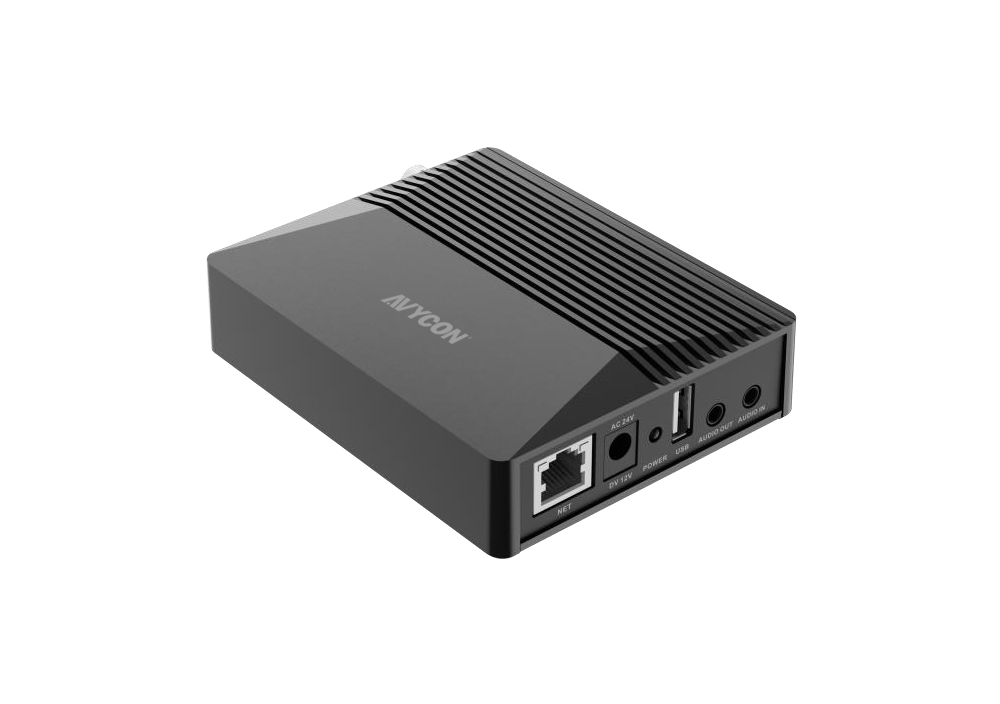

5MP H.265 HD VIDEO SERVER

상품 선택옵션 0 개, 추가옵션 0 개

• 5MP (2592x1944)H.265+/H.264+/MJPEG
• Max. resolution:5MP (2592x1944)@20fps
• H.265+/H.265/H.264+/H.264/MJPEG coding
• Support ROI coding
• Support UTC (Up-The-Coax) control
• 8CH alarm input, 4CH alarm output
• 1CH audio input, 1CH audio output
• 1CH micro SD card slot, up to 256G
• Support three streams
• Intelligent analytics
Specifications Features Technology Documents Software Accessories

5MP H.265 HD VIDEO SERVER


• 5MP (2592x1944)H.265+/H.264+/MJPEG

• Max. resolution:5MP (2592x1944)@20fps

• H.265+/H.265/H.264+/H.264/MJPEG coding

• Support ROI coding

• Support UTC (Up-The-Coax) control

• 8CH alarm input, 4CH alarm output

• 1CH audio input, 1CH audio output

• 1CH micro SD card slot, up to 256G

• Support three streams

• Intelligent analytics

VIDEO
Analog Video Input BNC×1
BNC interface (1.0Vp-p; 75Ω)
TVI/AHD/CVI: 5MP@20fps; 4MP/1080P/720P @30fps CVBS video signal input supported
Video Compression H.265+/H.265/ H.264+ / H.264 / MJPEG
H.264 Compression Standard Baseline Profile/Main Profile/High Profile
Bit Rate Type VBR/CBR
Bit Rate 64Kbps ~ 8Mbps
Resolution 5MP (2592×1944), 4MP (2560×1440), 1080P (1920 ×1080), 720P (1280 × 720), D1, CIF, 480 × 240
Main Stream 5MP(1~20fps)/4MP/1080P/720P/D1 (60Hz:1~30fps; 50Hz:1~25fps)
Sub Stream 720P/D1/CIF (60Hz:1~30fps; 50Hz:1~25fps)
Third Stream D1/CIF/480×240 (60Hz:1~30fps; 50Hz:1~25fps)
AUDIO
Audio Input 1CH 3.5mm audio input
Two-Way Audio Take up the above audio input
Audio Output 1CH 3.5mm audio output
Audio Compression G711A/U
Image Setting Saturation, hue, brightness, contrast, wide dynamic range, sharpness, defog, NR, image mirror, image flip, etc., adjustable through client or web browser
ROI 8 ROI, each region can be set up separately
INTERFACES
Network 100M RJ45
Audio 1CH 3.5mm audio input; 1CH 3.5mm audio output
Video 1CH BNC video input
Storage 1 micro SD card slot, up to 256G
Alarm 8CH alarm input; 4CH alarm output
FUNCTION
Remote Monitoring Web browser/CVS2.0/NVR/mobile APP
Online Connection Supports simultaneous monitoring for up to 8 users
Supports multi-stream real time transmission
Network Protocol Network Protocol
Interface Protocol ONVIF
Storage Network remote storage; micro SD card storage
Smart Alarm SD card full, SD card error, IP address conflict, cable disconnection, sensor alarm, motion alarm
Intelligent Analytics Video exception detection: video blur detection, abnormal color detection, scene change detection Perimeter protection: line crossing/region entrance/ region exiting/ region intrusion detection (human/motor vehicle/non-motor vehicle classi?cation) Statistics: target counting by line/area (human/motor vehicle/non-motor vehicle classi?cation) Face detection: face detection, face capture Other events: abandoned/missing object detection, heat map
General Function Yes, IEEE802.3af
PoE Yes, IEEE802.3af
Water-proof Grade No
OTHER
Power Input DC12V/PoE
Power Output Yes, max. 12V@0.5A
Power Consumption < 5.5W
Environmental Protection RoHS 2.0, REACH, WEEE, directive94/62/EC
Working Environment -22ºF~140ºF (-30ºC~60ºC), Humidity: less than 95% (non-condensing)
Storage Environment -22ºF~149ºF (-30ºC~65ºC), Humidity: less than 95% (non-condensing)
Dimensions in(mm) Server: 4.27x3.45x1.10in (108.5x87.8x28.0mm)
Weight (net) Approx. 271.4 g
Installation Wall mounting

5MP H.265 HD VIDEO SERVER
