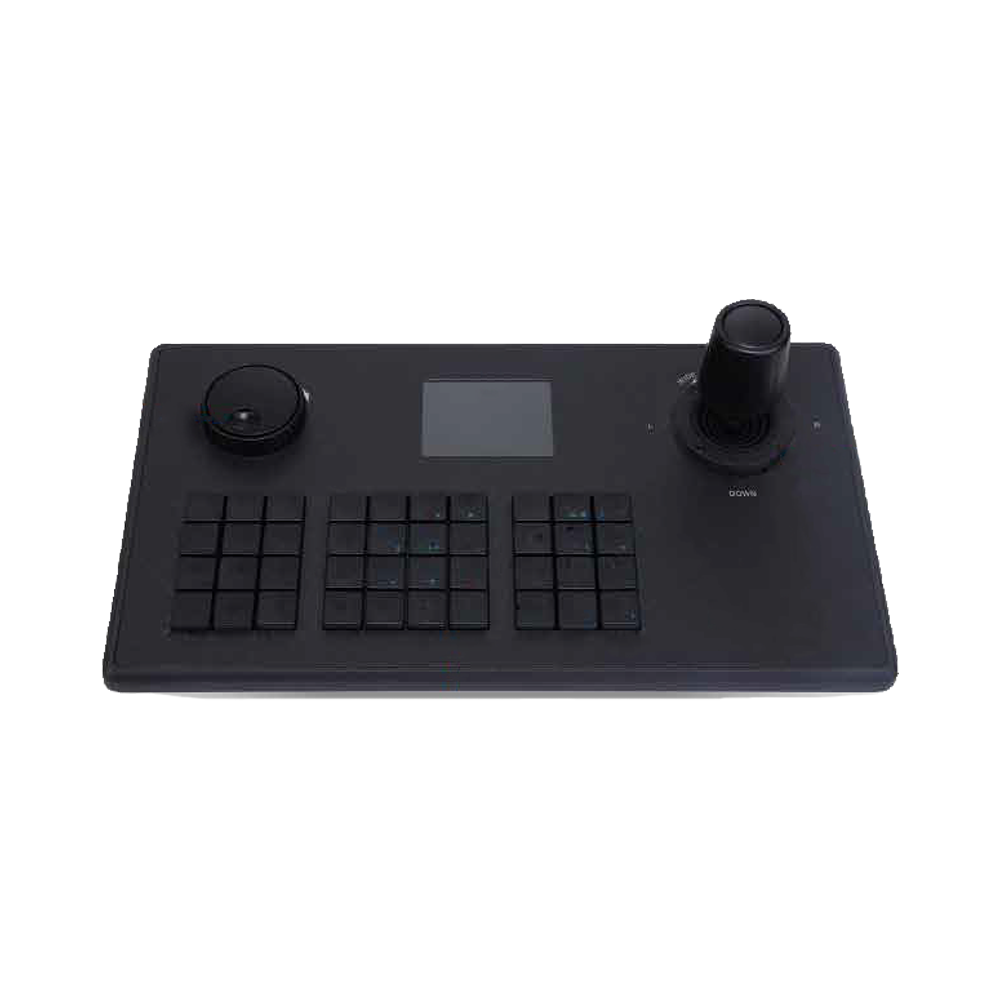

AVYCON NETWORK KEYBOARD
The AVYCON Network Keyboard allows users to conveniently access, connect, and control AVYCON Network Video Recorders and PTZ cameras. AVK-NK500-A1 features include a built-in web server, a 4-axis variable speed joystick, a LCD screen, and shortcut keys for PTZ, NVR, recording, and playback functionalities, as well as light control operations.
• Support Network connection, which is a truly convenient way for easy connection and control for AVYCON Auto-Tracking PTZ Cameras.
• Built-in Web Server can support the use of browser to easily manage and maintain the keyboard.
• Support 4-axis variable speed joystick.
• Designed with a LCD screen on operation panel, it is easy to display operations support to control up to 110 devices.
• Shortcut keys for PTZ control, such as preset, patrol and pattern.
• Shortcut keys for NVR control, such as snapshot and audio operation.
• Shortcut keys for recording and playback control, such as record, play, stop, pause, speed up and speed down.
• Shortcut keys for light control operation.
• Easy to operate, stable performance.
| DESCRIPTION | |
| Model | AVK-NK500-A1 |
| Control Mode | IP-based |
| Control Device | AVYCON Auto-Tracking PTZ Cameras |
| Supported Camera Models | AVC-LHN21SVT-A1S, AVC-LHN51SVT-A1S, AVC-NPTZ21X12L, AVC-NPTZ51X23L, AVC-NPTZ21X30L, AVC-NPTZ51X42L |
| LCD Screen | 58X44 (2.8”) Blue Screen |
| Joystick | 4-axis joystick |
| NETWORK | |
| Interface | IPV4, HTTP, TCP, MSSP |
| Network Interface | 1*RJ45 100M/1000M |
| Serial Interface | 1*RS-232 |
| GENERAL | |
| Working Environment | Temperature: -10ºC~55ºC/Humidity: 20%~80% |
| Power Supply | PoE (802.3af) / DC 12V 2A |
| Power Consumption | 5W MAX |
| Weight | 3.43Ibs(1.56Kg) |
| Dimensions | 12”(W)x 7”(D)x 4.2”(H)(320mmx178mmx106mm) |
| Warranty | 2 Years |
