PROFESSIONAL WI-FI ACCESS POINT

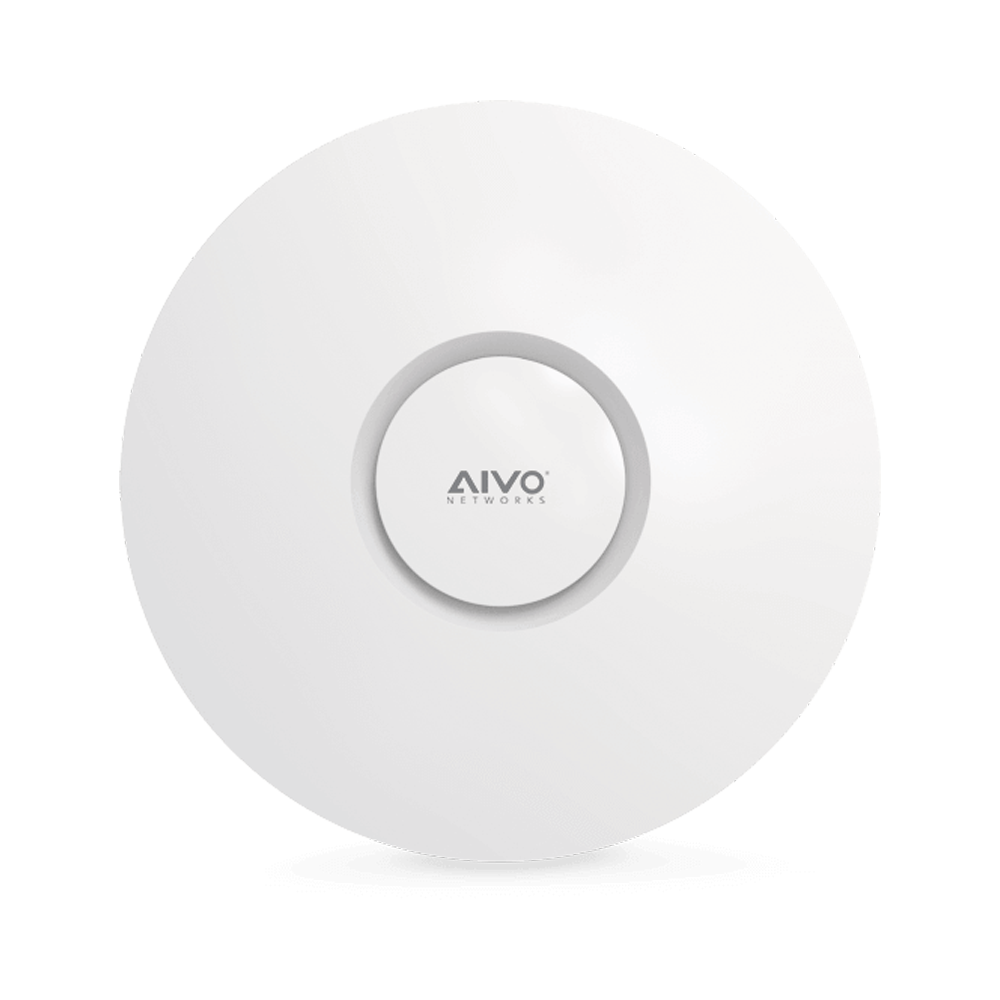

AIVO Network's ANAP3002Q is a professional Wi-Fi access point. The product supports bandwidth of up to 300 Mbps, along with multiple operation modes.
• Indoor 2.4ghz Wi-Fi Access Point
• Supports bandwidth of up to 300 Mbps
• Supports the following operation modes: Residential Access Point, Router, Commercial Access Point (managed with the ANAC100)
• Easy wireless setup mode allows for configuration with any mobile device or computer
• Supports the following wireless encryption: WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i
• Includes 48V PoE power injector which allows for powering AP from up to 330ft. away
• Configurable Tri-color LED ring to indicate power and network activity
• Hardware Reset Button
• Supports Wall or Ceiling Mounting
| General | |
| Chipset |
Qualcomm QCA9531 |
| Ethernet Standard |
IEEE802.11n/g/b, IEEE802.3af |
| Wi-Fi Frequency | 2.4 Ghz - 2.4835 Ghz |
| Maximum Users | 85 Users |
| RAM | 64MB DDR2 |
| Flash | 16MB SPI |
| Bandwidth |
300Mbps |
| Power Amplifier | SE2576L x 2 |
| Hard Buttons | Reset |
| Power Supply |
48V PoE Power Adaptor |
| Wireless Encryption | WEP, WPA-PSK, WPA-TKIP, WPA2 AES,802.11i |
| Max. Transmit Power | 110mW |
| Antenna | 2 x 3dBi Loop Antenna |
| LED Indicator | Tri-Color RGB |
| Dimensions | 7.8” x 0.7” |
| Work Environment | 14°F ~ 149°F, 10% ~ 90% RH, Non-condensing |
| Storage Environment | -40°F ~ 158F, 5% ~ 95% RH, Non-condensing |
| OS | Linux / OpenWRT |
| Operating Modes |
AP, Repeater, Router, WDS |
PROFESSIONAL WI-FI ACCESS POINT
-
