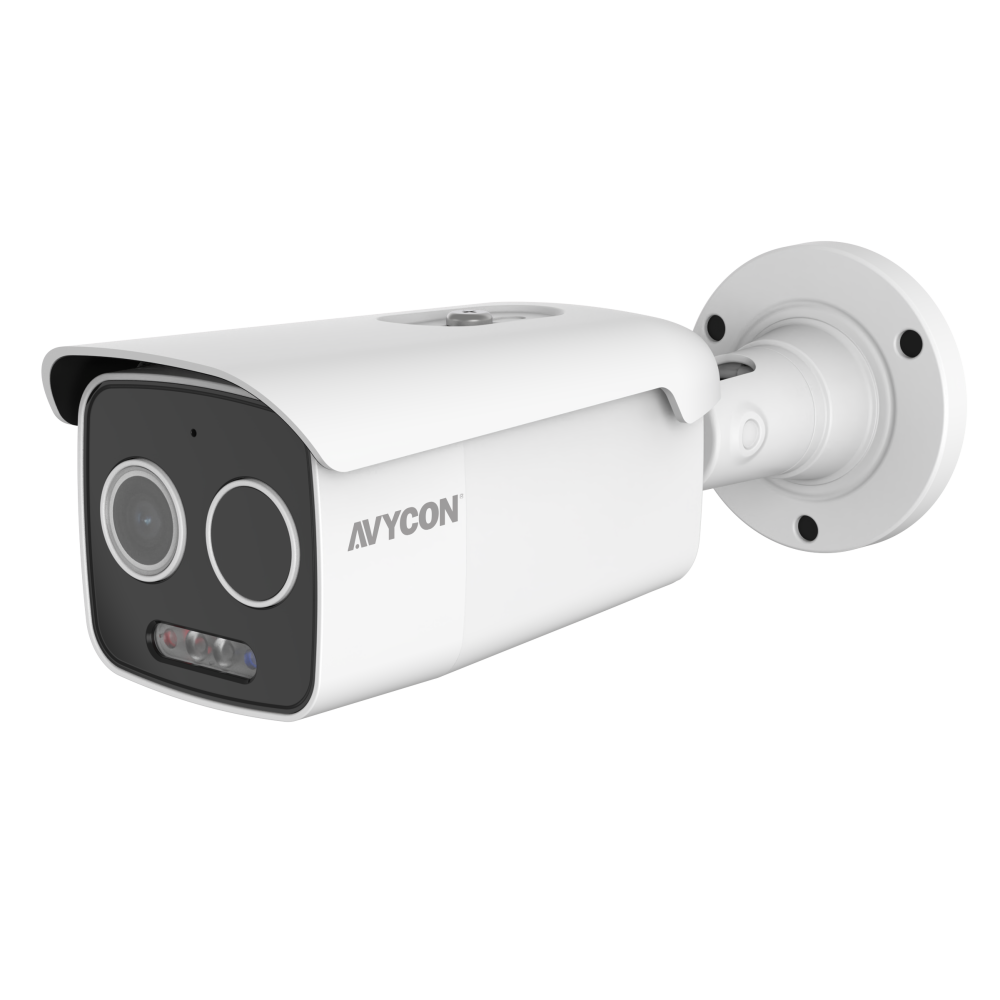

5MP THERMAL BULLET NETWORK CAMERA
• 5MP (2592x1944) H.265+, H.265, H.264+, H.264, MJPEG
• Max. resolution: 2592x1944
• Optical : 8mm Fixed Lens (F1.6)
• Thermal : 7mm Fixed Lens (F1.0)
• 3D DNR, WDR, HLC, BLC, ROI encoding
• Intelligent Analytics
• White Light / Red & Blue LED
• Built-in MIC / Speaker
• Built-in micro SD card slot with video and still image
capture function (up to 512GB)
• IP67 ingress protection
• DC12V/PoE power supply
• Support remote monitoring by AVYCON ONE
(Mobile APP) and AVYCON CMSONE (CMS
| THERMAL MODULE | |
| Image Sensor | Vanadium Oxide Uncooled Focal Plane Arrays |
| Max Resolution | 256×192 |
| Pixel Interval | 12μm |
| Response Waveband | 8-14μm |
| NETD (Noise Equivalent Temperature Difference) | ≤40mk@25°C F＃1.0, 25Hz |
| Lens (Focal Length) | 7mm |
| IFOV | 1.69 mrad |
| Field of View | 24.8° x 18.7° |
| Min. Focusing Distance | 3.28ft (1m) |
| Aperture | F 1.0 |
| DRI Distance Human | Detection: 909ft(277m), Recognition: 260ft(79m), Identification: 131ft(40m) |
| DRI Distance Vehicle | Detection: 3018ft(920m), Recognition: 755ft(230m), Identification: 377ft(115m) |
| VCA Range for Humans | 197ft(60m) |
| VCA Range for Vehicles | 558ft(170m) |
| Heat Detection Distance | 197ft(60m) |
| OPTICAL MODULE | |
| Max. Image Resolution | 2592 x 1944 |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @(F1.6, AGC ON), B/W: 0 @IR ON |
| Shutter Speed | 1/5 s to 1/20,000s |
| Lens (Focal Length) | 8mm |
| Field of View | Horizontal: 42.3°, Vertical: 23.4°, Diagonal: 48.7° |
| WDR | 120 dB |
| Day & Night | IR cut filter with auto switch |
| IMAGE FUNCTION | |
| Bi-spectrum Image Fusion | Fusion view of thermal view and overlaid details of the optical channel |
| SMART FUNCTION | |
| Intelligent Analytics | Optical: Loitering, Region Entrance, Region Exiting, Tripwire, Human & Vehicle, Stationary Object Detection, Tripwire Count,Crowd Density, Queue Length, Heat MAP, Rare Sound, Face Detection, Thermal: Loitering, Region Entrance, Region Exiting, Tripwire, Fire detection, Temperature exception alarm, Human & Vehicle |
| Temperature Measurement | 3 temperature measurement rule types (points, areas, and line), 20 rules in total |
| Temperature Range | -4 °F to + 1022°F (-20 °C to + 550 °C) |
| Temperature Accuracy | ± 37.4°F (3°C) / 3% |
| Fire Detection | Dynamic fire point detection |
| INFRARED | |
| IR Distance | IR : Up to 164ft (50m) / Warm light: 98ft (30m) |
| NETWORK | |
| Main Stream | Optical: 50Hz@25fps; 5MP(2592x1944),4MP(2592x1520),3MP(2304x1296),1080P(1920x1080), 960P(1280x960),720P(1280x720) 60Hz@30fps; 5MP(2592x1944),4MP(2592x1520),3MP(2304x1296),1080P(1920x1080), 960P(1280x960),720P(1280x720) Thermal: 50Hz/60Hz@25fps; 1280 × 720, 640 x 480 |
| Sub-stream | Optical: 50Hz@25fps; 720P(1280x720),VGA(640x480),QVGA(320x240) 60Hz@30fps; 720P(1280x720),VGA(640x480),QVGA(320x240) Thermal: 50Hz/60Hz@25fps; 640 x 480, 320x240 |
| Mobile Stream | Optical: 50Hz@25fps; VGA(640x480), QVGA(320x240), 60Hz@30fps; VGA(640x480),QVGA(320x240) Thermal: 50Hz/60Hz@25fps; VGA(640x480), QVGA(320x240) |
| Video Compression | H.265/H.264/MJPEG/H.265+/H.264+ |
| Audio Compression | G.711u/G.711a |
| Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| User/Host Level | 6 users, 2 levels: Administrator, User |
| Security Measures | User authentication (ID and PW), HTTPS encryption, IP address filtering |
| INTEGRATION | |
| Alarm Input | 1-ch input |
| Alarm Output | 1-ch output |
| Alarm Action | SD recording/relay output/smart capture/FTP upload/email linkage/audio alarm/Red & Blue flashing light |
| Audio Input | 1-ch |
| Audio Output | 1-ch output/ 1 Built-in speaker |
| Reset | Yes |
| Communication Interface | 1, RJ45 10M/100M self-adaptive Ethernet interface |
| SD Memory Card | Built-in micro SD card slot (up to 512 GB) |
| Analog Video Output(BNC) | NA |
| Web Browser | IE10/11, Safari V12.1 above, Firefox V.52 above, Google chrome V.57 above, Edge V.79 above |
| GENERAL | |
| Menu language | English, Russian, German, Italian, French, Portuguese, Spanish, Turkish, Japanese |
| Power | 12VDC ± 20%, PoE (802.3af) |
| Power Consumption | 12VDC: 7.44W/PoE: 10.9W |
| Working Temperature/Humidity | Temperature: -31 °F to 140 °F (-35 °C to 60 °C), Humidity: 90% or less |
| Protection level | IP67 |
| Dimensions | 4.25 x 12.39in (108 x 314.6mm) |
| Weight | Approx. 2.76lb (1.25kg) |
| Environment | RoHS2.0 |
