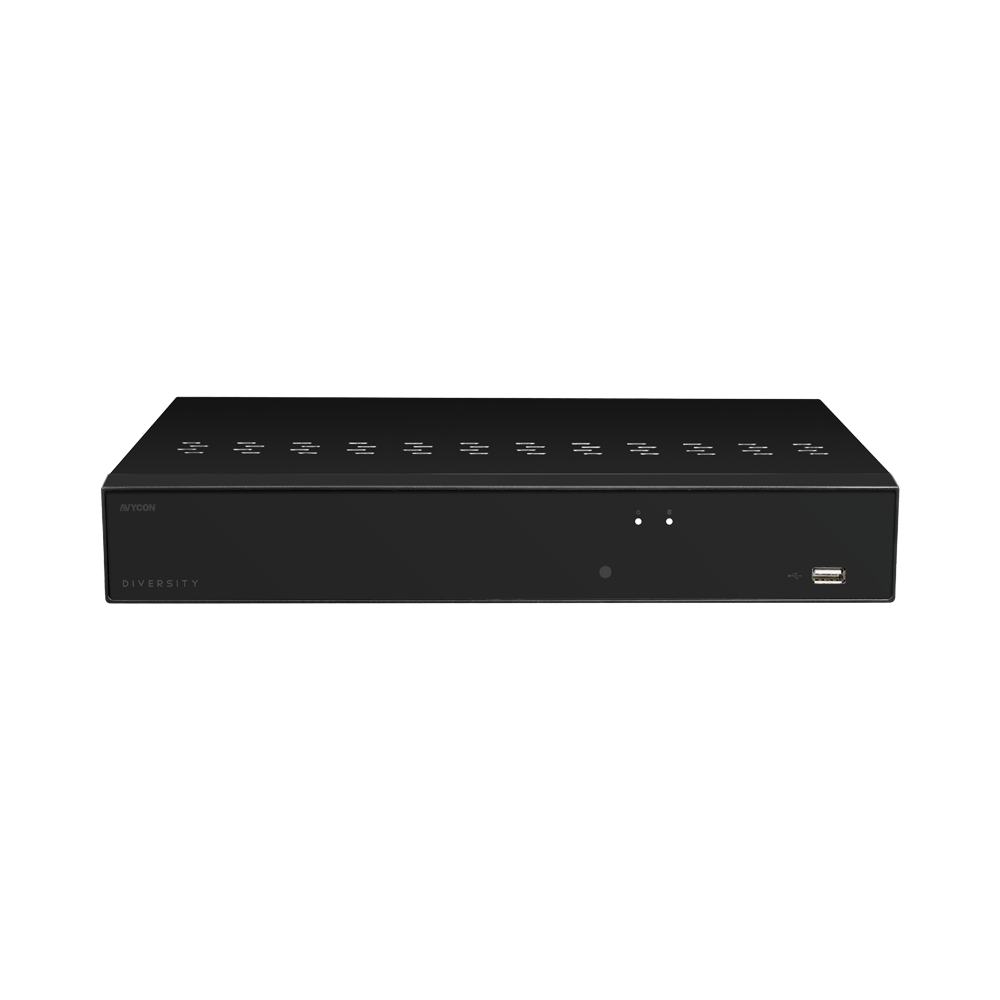

4 CH. 4K UHD DIGITAL VIDEO RECORDER
• H.265 codec decoding
• Full hybrid to support TVI/AHD/CVI/Analog/960H/IP cameras
• Support AHD/TVI/CVI/Analog 960H/IP cameras
• Up to 8MP(4K) resolution for preview and playback
• Support to install up to 1 HDD, max total capacity of up to 16TB
• Full function network remote view via Internet (CMS, IE/Firefox/Chrome, Mac Safari)
• No limitation on adding devices to CMS, max. 128 channels preview (CMSONE Client Software)
• Support scan P2P QR code to connect DVR via Mobile app (AVY Mobile One)
• Support to save pictures/video to Dropbox storage (Dropbox)
• Support to save pictures/video to FTP server (built by user)
• VGA/HDMI output up to 4K resolution
• Support HDD S.M.A.R.T. Monitoring
• Ability to convert up to 4 analog channels to have in total 6 IP channels (Total Bandwidth 36mbps)
| VIDEO | |
| Analog Video Input | 4CH input |
| IP Video Input |
2CH, (only IP up to 6CH) |
| Total Video Input | 6CH, (Analog + IP) |
| Output | HDMI x 1: EDID / 3840 x 2160(4K) / 2560 x 1440(2K) / 1920 x 1080 / 1440 x 900 / 1280 x 1024 / 1280 x 720 / 1024 x 768 VGA x 1: 1920 x 1080 / 1440 x 900 / 1280 x 1024 / 1280 x 720 / 1024 x 768 BNC x 1: 704 x 576 |
| Incoming Bandwidth (Mbps) | 12Mbps~36Mbps |
| Outgoing Bandwidth (Mbps) | 48Mps |
| Video Compression | H.264/H.265 |
| Audio Compression | G.711a |
| Installation Wizard | Yes |
| HD Analog | 8MP @ 15fps / 5MP Lite @ 20fps / 4MP / 1080P / 960P / 720P |
| IP | 8MP / 5MP / 4MP / 1080P / 720P |
| PLAYBACK | |
| Playback Frame Rate | 8MP: 7fps, 5MP: 12fps, 4MP: 15fps, 1080P/ 720P/ NTSC: 30fps (each CH) |
| Smart AI | Analog Cameras: Intrusion Detection (ID), Tripwire Detection (TD), Human & Vehicle Detection (PD & VD), Sound Detection (SD), Video Tampering (TD) |
| Event Triggers | MD (Sensitivity Level 1~8), Video Loss, Beep, Email, Push Notification to Mobile App |
| Playback Function | Fast forward / backward (2x, 4x, 8x,16x), Slow forward (1/2x, 1/4x, 1/8x,1/16x) |
| Playback | Max 8CH playback |
| INTERFACE | |
| Local UI |
UI5.0 |
| Web Monitoring | IE10/11, Safari V12.1 above, Firefox V.52 above, Chrome V.57 above, Edge V.79 above |
| Mobile Viewer | AVY Mobile One |
| Push Notification | Motion Event, AI, and Abnormal |
| Password Reset |
Password Reset (Hold 3 seconds), Factory Reset (Hold 8 seconds) |
| HDD Interface | SATA x 1, Max 16TB HDD |
| AI FEATURES | |
| Perimeter Intrusion Detection (PID） |
Yes |
| Line Crossing Detection (LCD） | Yes |
| Pedestrian Detection and Vehicle Detection (PD and VD) | Yes |
| Stationary Object Detection (SOD） | Yes |
| Face Detection (FD） |
Yes |
| Crossing Counting (CC） | Yes |
| Rare Sound Detection (RSD） | No |
| Video Tampering (VT） | Yes |
| License Plate Detection Enhance (LPD) | No |
| Heatmap (HM) | / |
| Crowd Density Detection (CD) | / |
| Queue Length Detection (QD) | / |
| SYSTEM | |
| PoE | N/A |
| Ethernet |
1 × RJ45 10/100 Base-T |

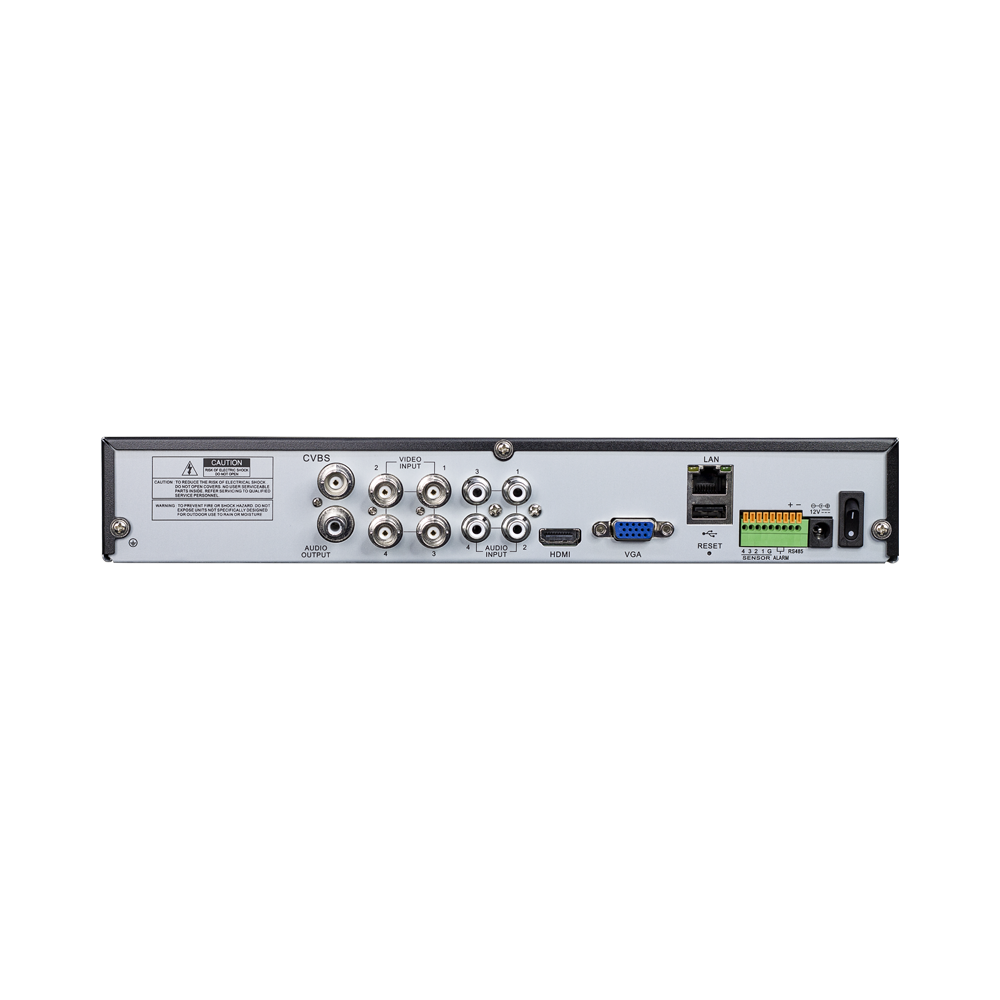

| USB | USB 2.0 x 1 (Front Panel), USB 3.0 x 1 (Rear Panel) |
| Audio | 4 IN / 1 OUT |
| E-Sata |
No |
| RS485 |
1 |
| Alarm Input/out |
4 IN / 1 OUT |
| GENERAL | |
| OSD Language | English and more |
| Power Consumption | 4.7W (Without HDD) |
| Power Supply | DC12V/2A |
| Working Environment | 32°~104°F (0°~40° Celcius) |
| Working Humidity | Less than 90%RH (Non-Condensing) |
| Dimensions | 11.81” × 8.94” × 2.09” (300mm x 227mm x 53mm) |
| SMART AI FEATURES | |
4 CH. 4K UHD DIGITAL VIDEO RECORDER
-
