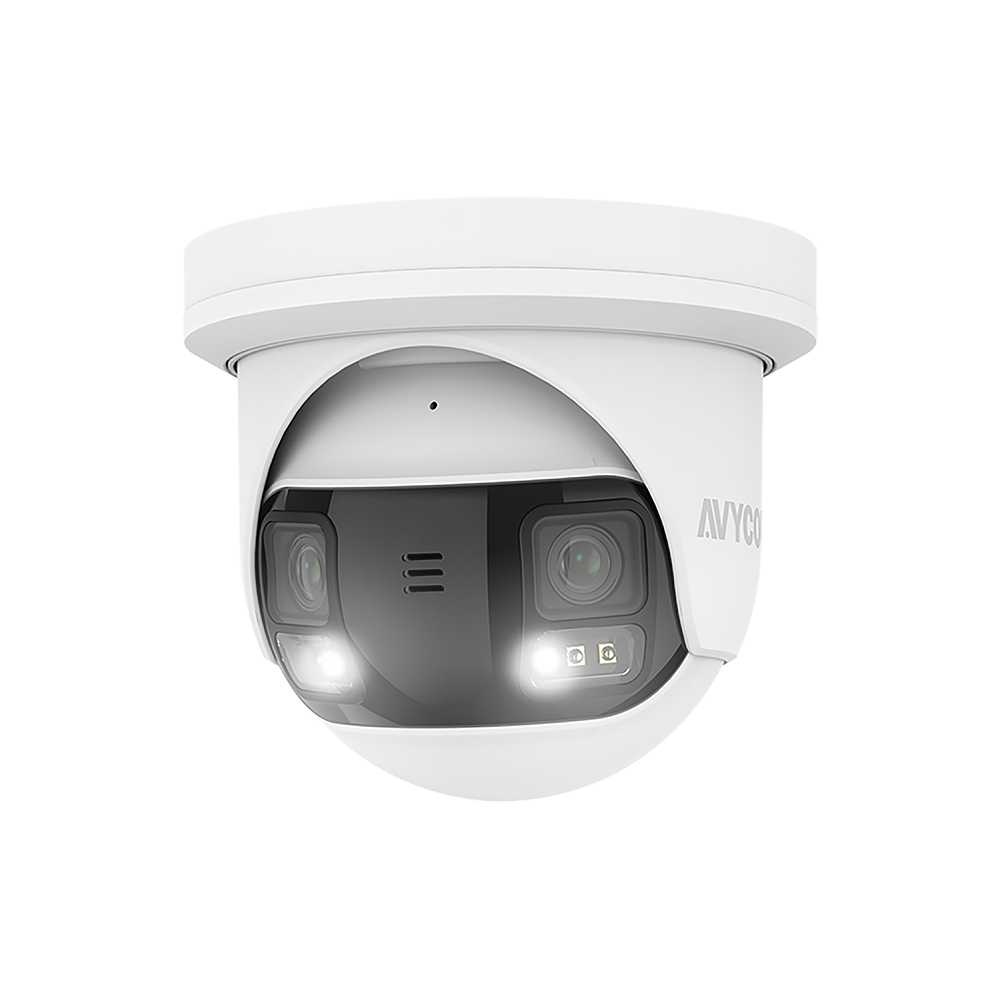

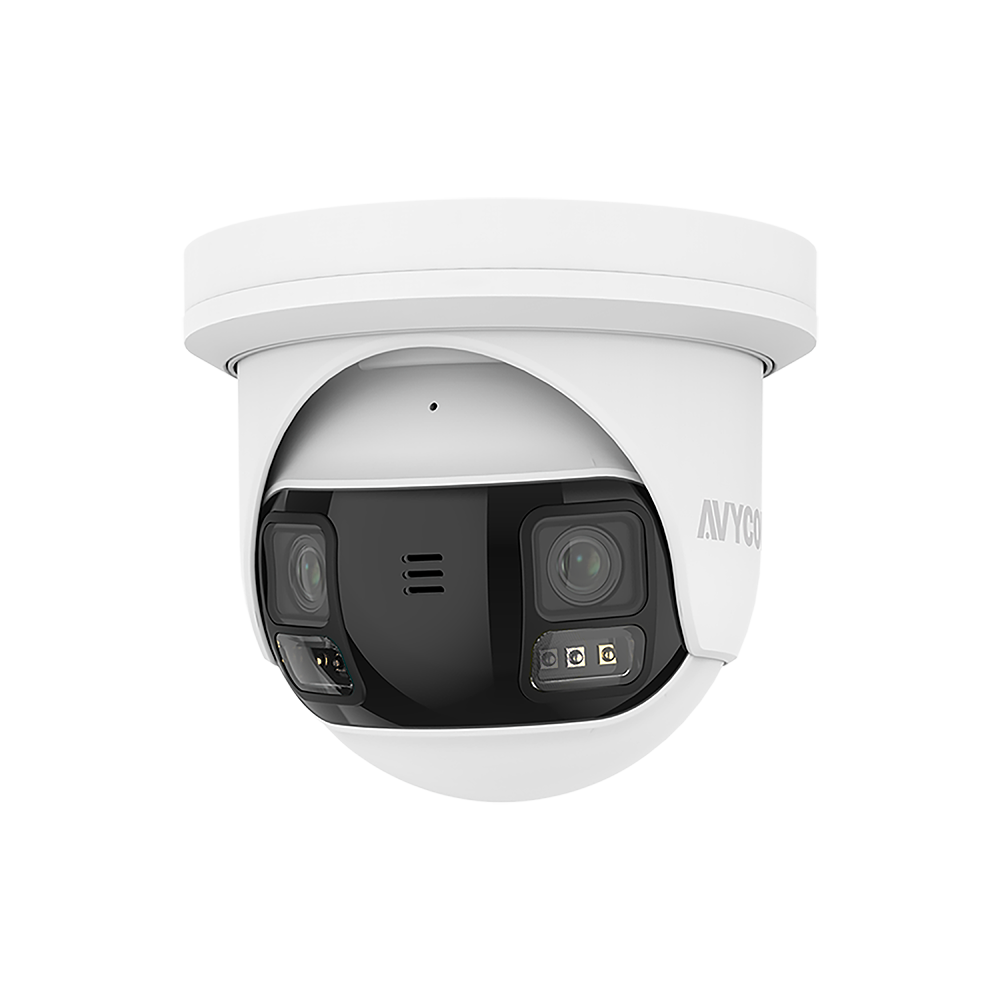

AVC-NPE81F2D Overview & Purchase

8MP H.265 DUAL LENS PANORAMIC TURRET NETWORK CAMERA

상품 선택옵션 0 개, 추가옵션 0 개

• 8MP (5120×1440) H.265+, H.265, H.264+, H.264, MJPEG
• Max. resolution: 5120×1440

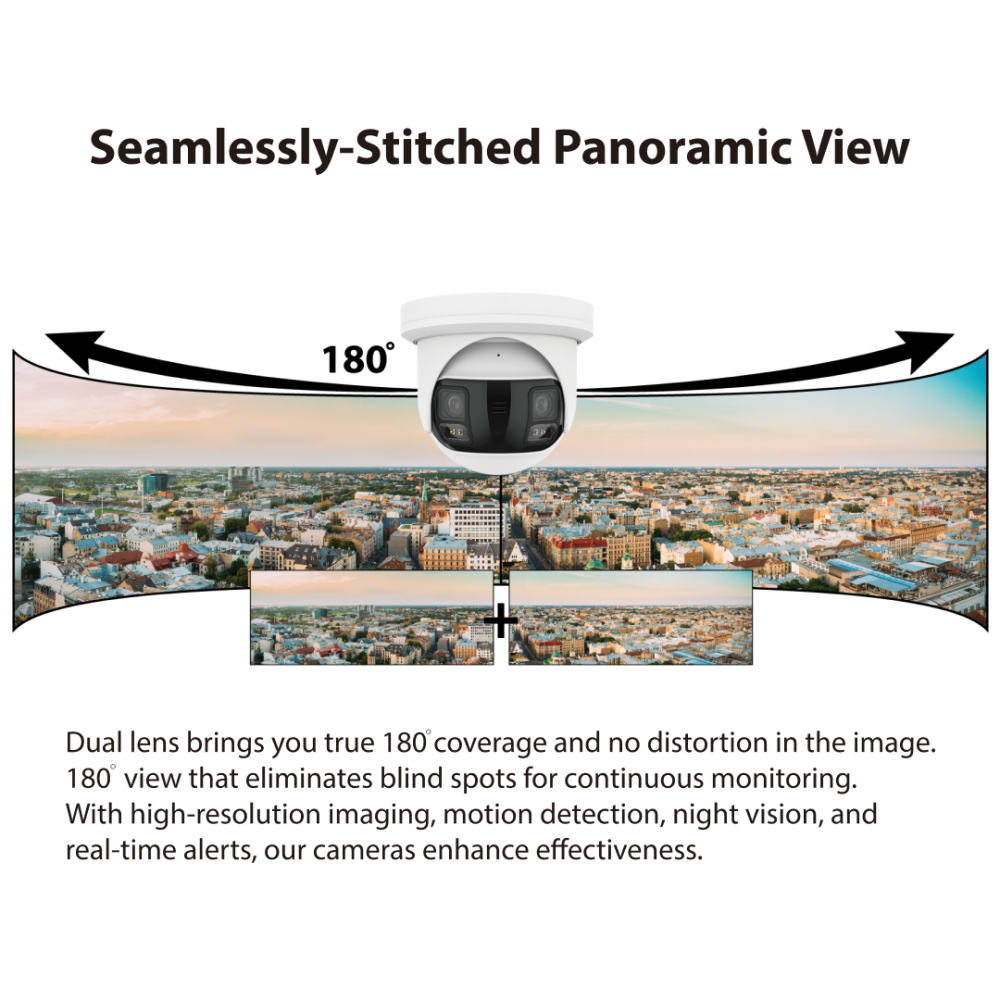

• Dual Lens Stitched Panoramic View (2 x 2.8mm Fixed Lens)
• Full Color / Active Deterrence Camera
• 3D DNR, WDR, HLC, BLC, ROI encoding
• Intelligent Analytics

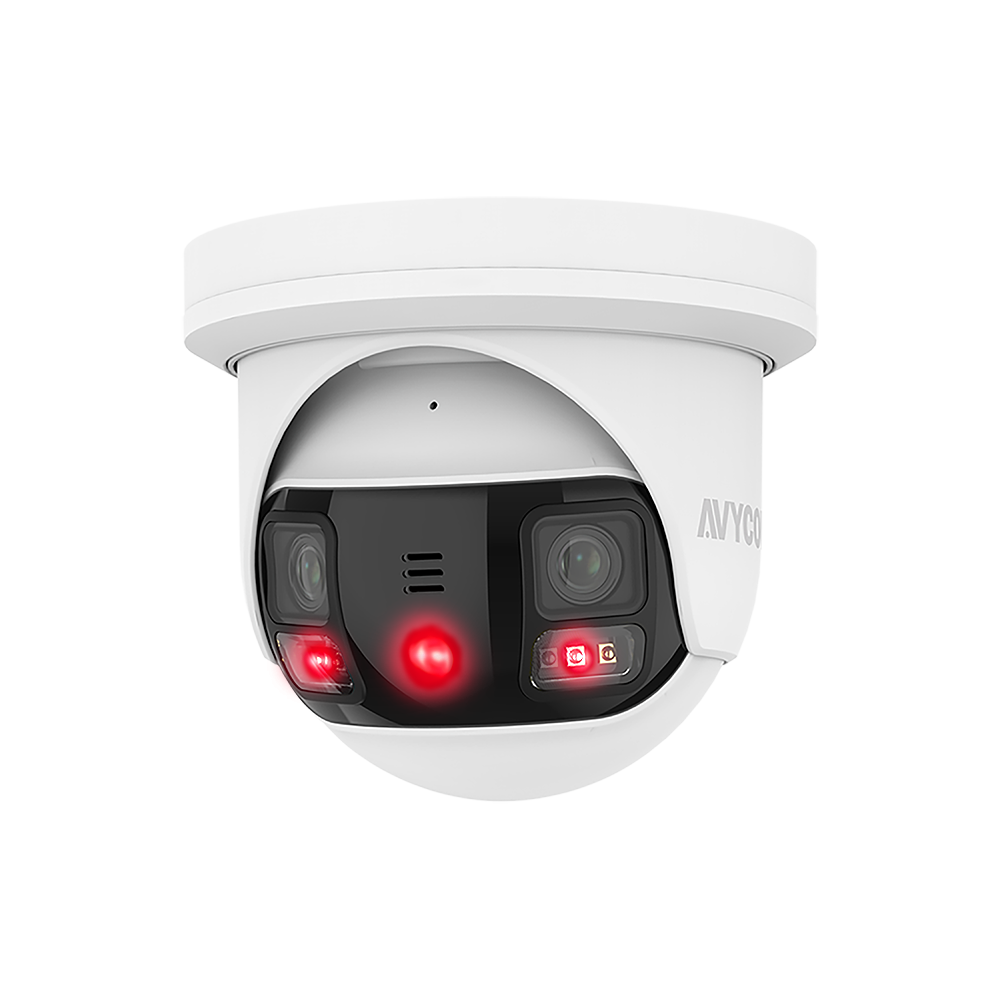

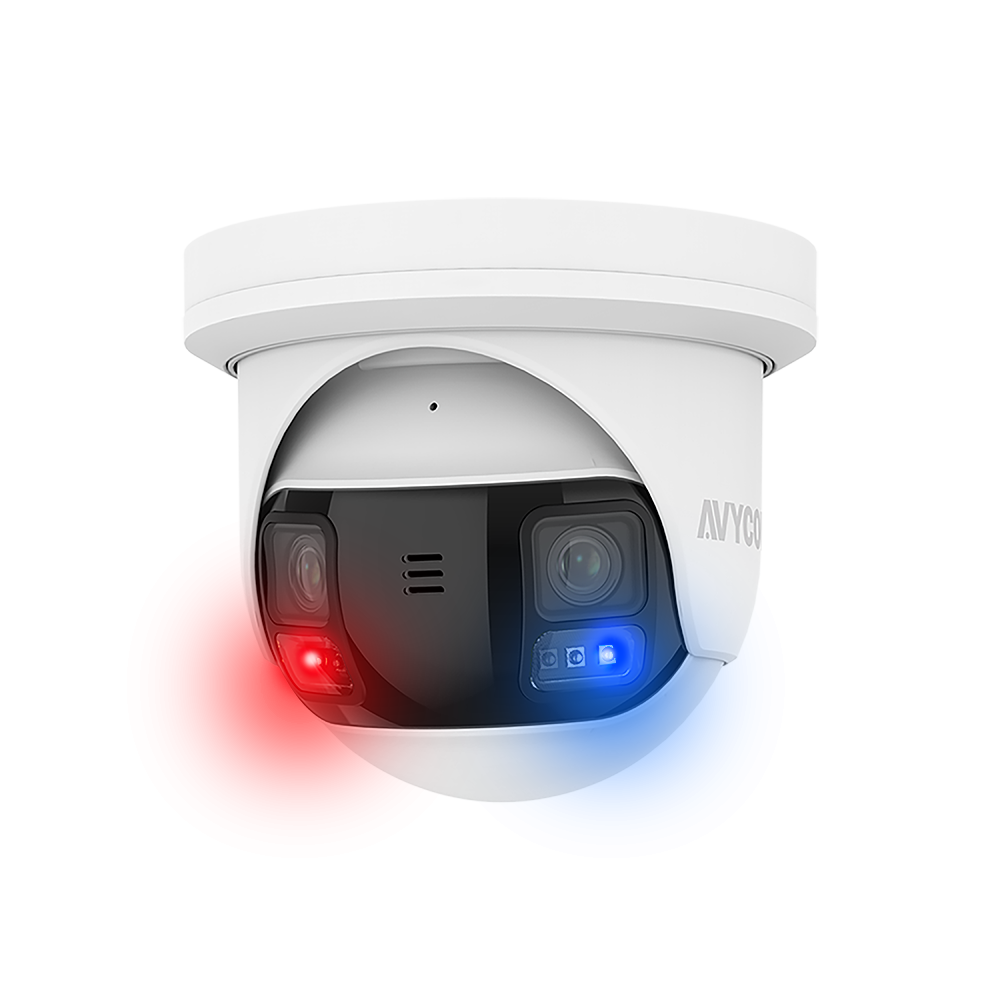

• White Light LED / Strobe (Blue & Red) Light
• Built-in MIC / Speaker
• Built-in micro SD card slot with video and still image
capture function (up to 512GB)
• IP67 ingress protection
• DC12V/PoE power supply
• Support remote monitoring by AVYCON ONE
(Mobile APP) and AVYCON CMSONE (CMS)

Specifications Features Technology Documents Software Accessories

8MP H.265 DUAL LENS PANORAMIC TURRET NETWORK CAMERA

• 8MP (5120×1440) H.265+, H.265, H.264+, H.264, MJPEG

• Max. resolution: 5120×1440

• Dual Lens Stitched Panoramic View (2 x 2.8mm Fixed Lens)

• Full Color / Active Deterrence Camera

• 3D DNR, WDR, HLC, BLC, ROI encoding

• Intelligent Analytics

• White Light LED / Strobe (Blue & Red) Light

• Built-in MIC / Speaker

• Built-in micro SD card slot with video and still image capture function (up to 512GB)

• IP67 ingress protection

• DC12V/PoE power supply

• Support remote monitoring by AVYCON ONE (Mobile APP) and AVYCON CMSONE (CMS)

Features - WDR.png

Features - InfiniteStar.png

Features - H265.png

Features - Built-In Mic.png

Features - IP67.png

Features - Intelligent Video Analytics.png

Features - Advanced Edge Recording.png

Features - P2P.png

Features - Smart IR.png

VIDEO
Image Sensor	1/2.7" Progressive Scan CMOS x2
Max. Resolution	5120x1440
Min. Illumination	Color: 0.001 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed	1/5 s to 1/20000 s
Slow Shutter	Yes
Day & Night	IR cut filter
Zoom	N/A
LENS
Focal Length	2.8 mm Fixed
FOV	Horizontal field of view: 180°
Aperture	F1.2
ILLUMINATOR
Supplement Light Range	IR Distance: Up to 98ft /White light: up to 49ft
Supplement Light Type	IR & White light
VIDEO
Main Stream	60/50Hz@15fps; 5120x1440; 4608x1296; 4096x1152; 3840x1080; 3072x864
Sub-Stream	60/50Hz@15fps; 1536x432; 1024x288
Video Compression	Main stream: H.265+/H.265/H.264+/H.264
	Sub-stream: H.265+/H.265/H.264+/H.264/MJPEG
Video Bit Rate	CBR or VBR (128Kbps ~ 8Mbps)
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
Region Of Interest (ROI)	N/A
Audio	N/A
Audio Compression	G.711a/G.711u
NETWORK
Protocols	IPv4/IPv6, HTTP, HTTPS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP/IP, UDP, DHCP, PPPoE, RTMP (v8.2.3 firmware and above)
API	ONVIF Profile S/G/T/M, REST API
User/Host	7 User
Security	Password protection, Complicated password, HTTPS encryption, IP address filter, Control timeout settings
Client	VMS
Web Browser	IE11, Chrome 57+, Firefox 52+, Safari 11+
Day/Night Switch	Full Color Mode, D/N Mode, Auto
Image Enhancement	BLC, HLC, 3D DNR
Wide Dynamic Range (WDR)	DWDR
Image Settings	Saturation, brightness, contrast, sharpness, Hue and white balance adjustable by client software or web browser
Privacy	4 privacy masks
INTERFACE
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage	Micro SD/SDHC/SDXC Slot (up to 512GB) with video and still image capture function
Alarm	Built-in red & bule flashing lights
Audio	1 Built-in MIC, Built-in Speaker
Reset Button	Supported
EVENT
Basic Event	Motion detection
Analytics	Face Detection (FD), Pedestrian & Vehicle Detection (PD&VD), Intrusion Detection (ID), Line Crossing Detection (TD), Stationary Object Detection (OBJ), Crowd Density Detection (CD), License Plate Detection (LPR), Rare Sound Detection (RSD), Loitering Detection (LD), Region Entrance & Exiting Detection
GENERAL
Power	DC 12V/POE, max. 13.49W
Protection	IP67 / NDAA
Operating Condition	-22 ~ 140 F (-30～+60°C) / less than ≤ 95% RH
Material	Metal
Dimension	Ø 5.3in × 4.4in (Ø 135 mm × 112.4 mm) / 1.69lb (765g)

*Highest main stream resolution (5120x1440) is not supported on the following PoE NVR models: AVR-NSV04P4, AVR-NSV08P8, AVR-NSV16P16 Please contact our sales department for the most updated compatible model NVR's that supports highest main stream resolution (5120x1440).
